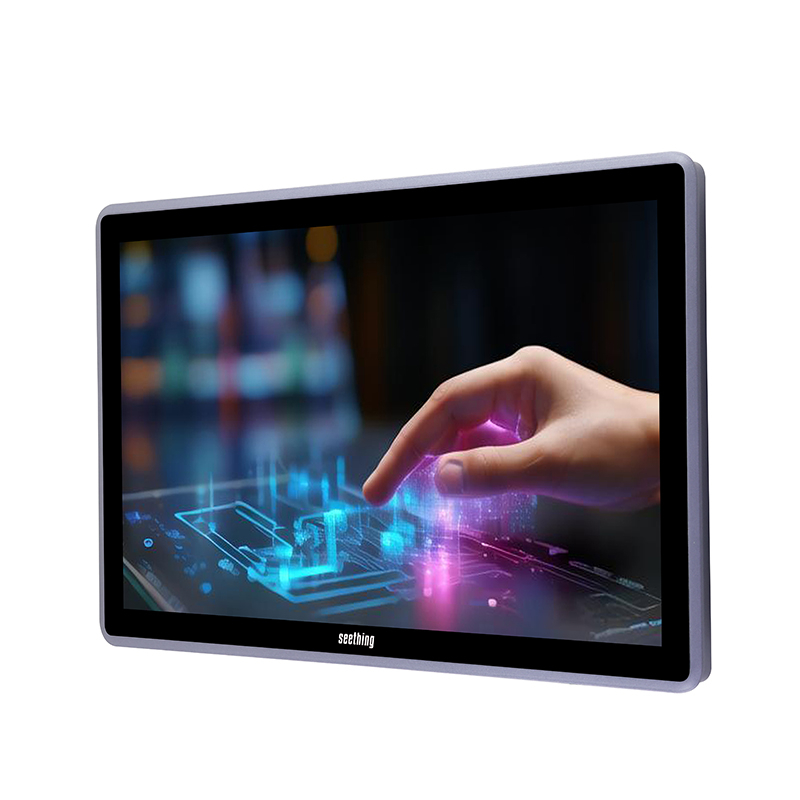

The STN156 is a compact yet powerful 15.6-inch industrial-grade touch screen panel PC, purpose‑built for kitchen display systems (KDS), industrial automation, and commercial self‑service kiosks. Engineered with a fanless aluminium alloy housing, a responsive 10‑point capacitive touch display, and flexible Intel Core i3/i5 processing power, this all‑in‑one terminal delivers reliable performance in demanding environments – from busy restaurant kitchens to factory floors. With multiple mounting options, rich I/O connectivity, and support for Windows or Linux, the STN156 offers a versatile, cost‑effective solution for digital order management and real‑time operational control.
Key Product Features

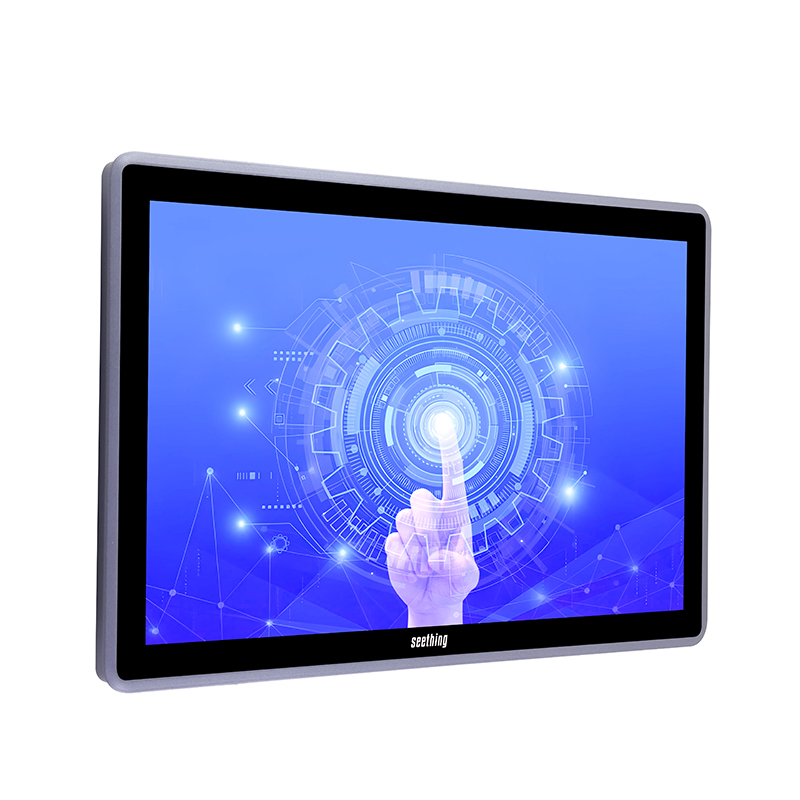

1. Industrial‑Grade 15.6" Capacitive Touch Screen
10‑point multi‑touch ensures smooth gesture control, even with gloves or in wet conditions.
1366×768 HD resolution with 300 cd/m² brightness guarantees clear, vivid visuals in both bright and dim lighting.
The rugged touch panel is resistant to scratches, oils, and daily wear, making it ideal for high‑traffic kitchen environments.
2. Powerful & Flexible Processor Options
Equipped with Intel Core i3 or i5 processors (multiple generations supported), delivering robust computing performance for running complex KDS software, POS systems, or data‑acquisition applications.
Configurable memory (8GB / 16GB / 32GB) and storage (128GB / 256GB / 512GB SSD) allow you to tailor the system to your workload and data retention needs.

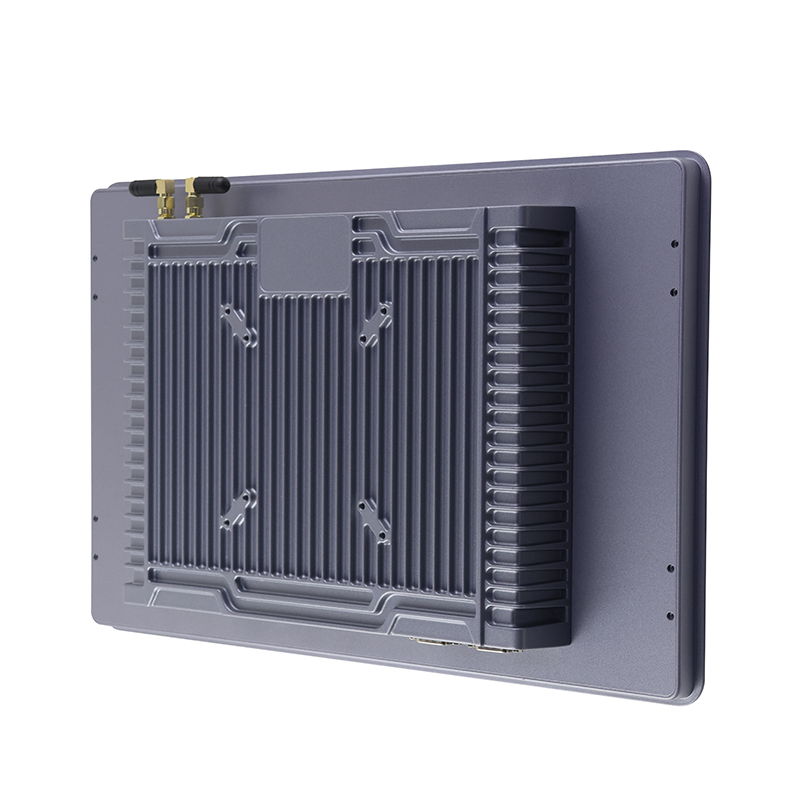

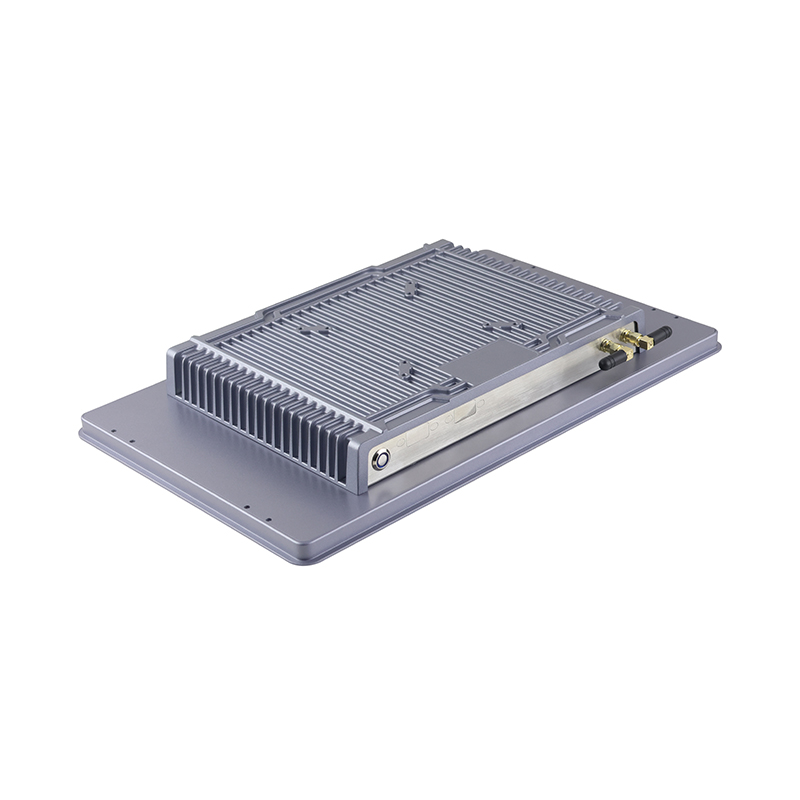

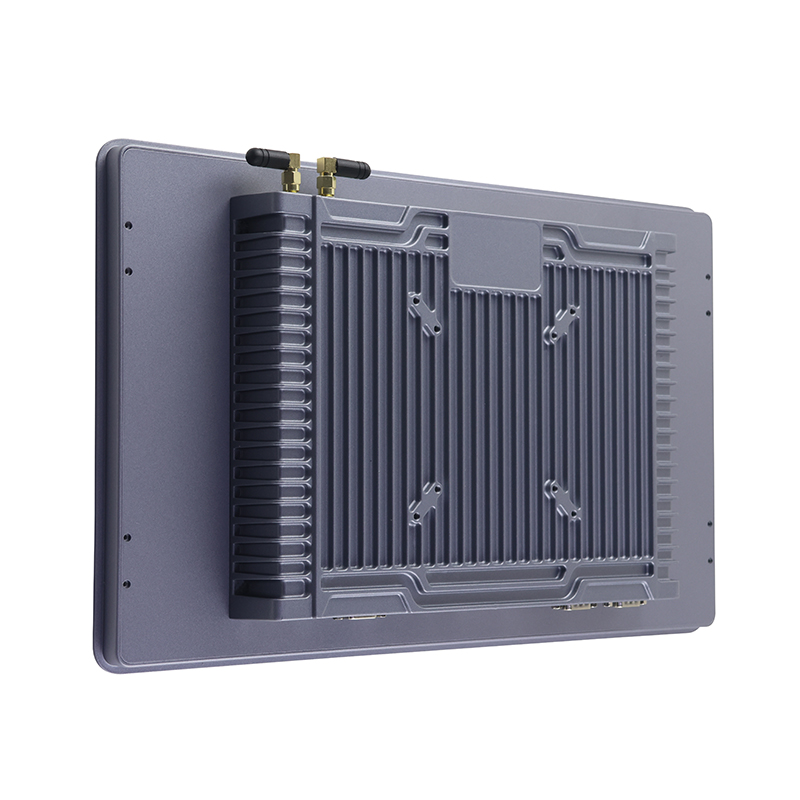

3. Fanless & Durable Aluminium Construction
Aluminium profile structure + aluminium back cover provides excellent heat dissipation without the need for internal fans, eliminating noise and reducing dust accumulation.
Fanless design extends product lifespan and ensures stable operation in high‑temperature environments up to 60°C.
Lightweight yet robust, the STN156 is built for 24/7 continuous use.
4. Comprehensive Connectivity for Seamless Integration

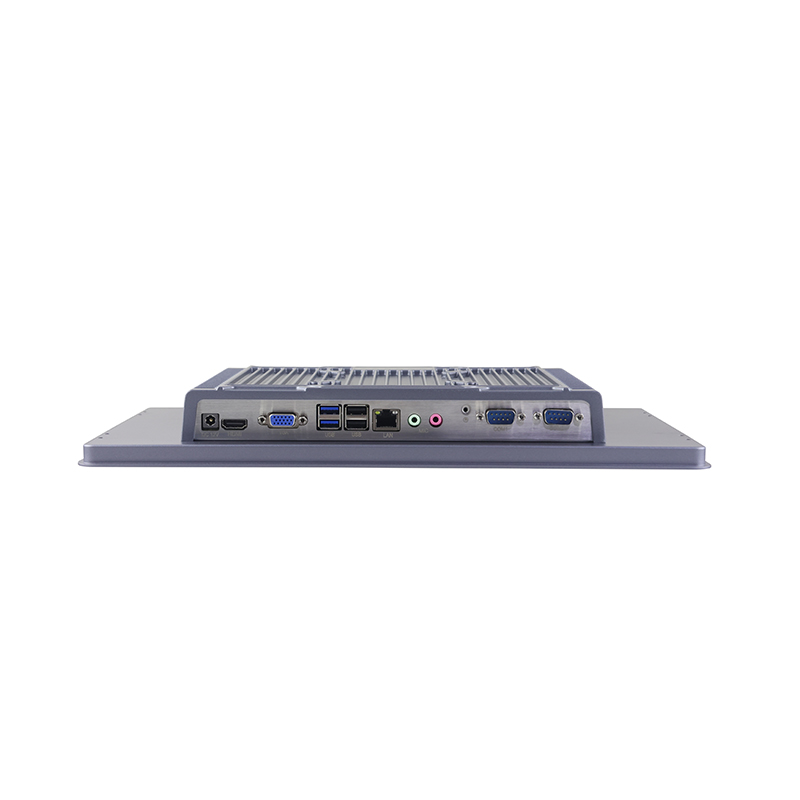

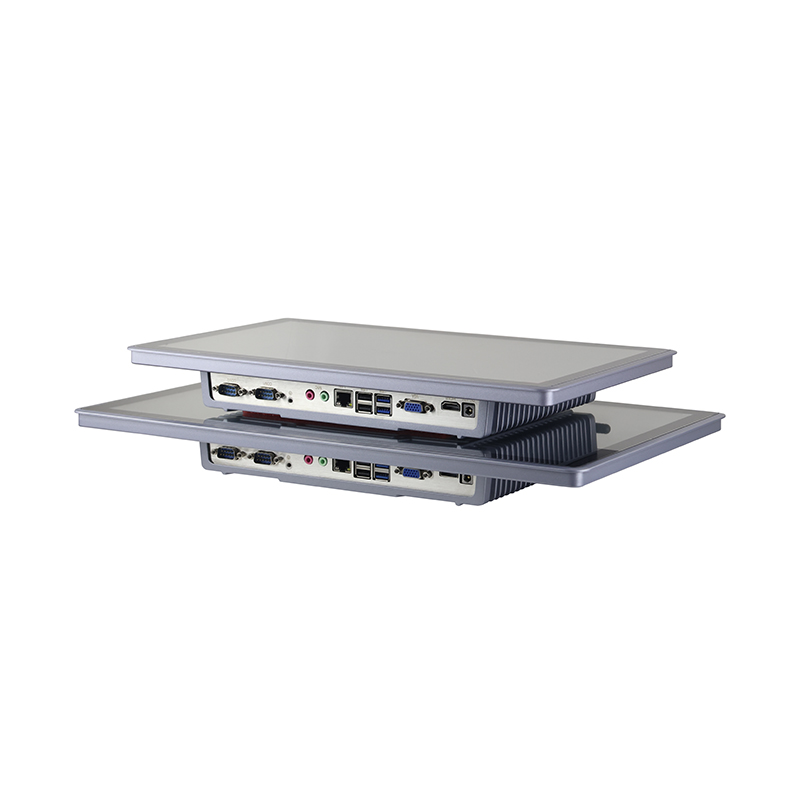

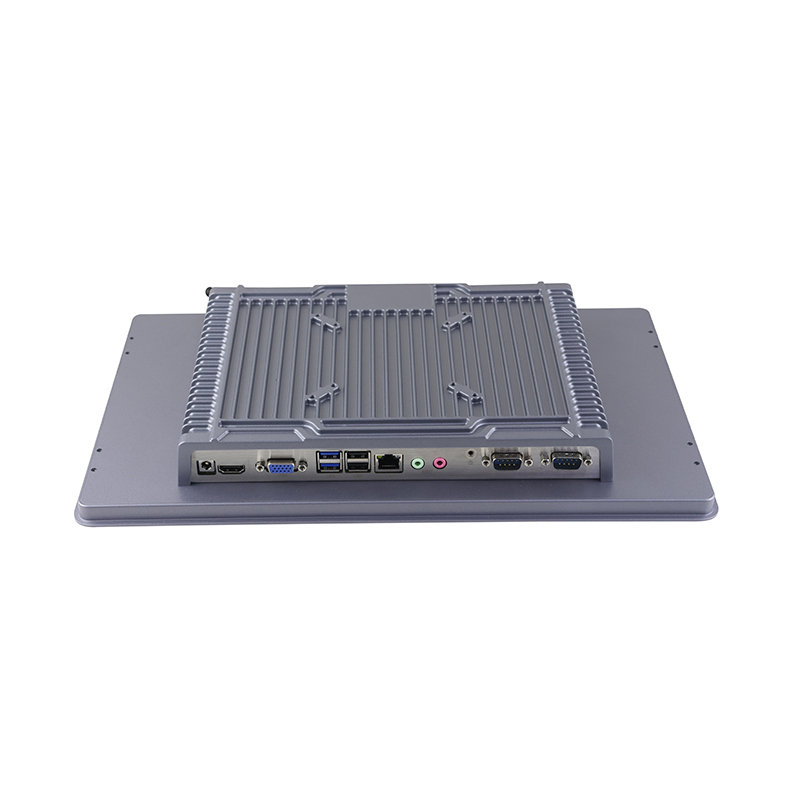

External I/O: 1×DC, 1×HD‑MI, 2×COM (RS232/RS485), 4×USB, 1×LAN, 1×Audio out/1×Audio in, 1×Push‑button switch.
Internal I/O: 6×USB 2.0, 4×COM (RS232), 1×GPIO, 1×SATA – enabling easy connection to printers, scanners, barcode readers, kitchen ticket printers, and other peripherals.
Wireless options: Built‑in WiFi, Bluetooth, and optional 4G/5G modules provide flexible network connectivity, even in locations with limited wired infrastructure.
5. Versatile Mounting & Space‑Saving Design
Supports wall‑mounted, embedded, and desktop installation, adapting to any workspace layout.
Compact dimensions: 400.4×254.4×58.7 mm – ideal for countertops, wall brackets, or flush‑mounted into equipment.
Available in black or grey to match your décor or branding.
6. Reliable in Harsh Environments
Wide operating temperature: -10°C to 60°C, with humidity tolerance of 10%~90% (non‑condensing).
Storage temperature: -20°C to 75°C, ensuring longevity even when not in active use.
Powered by a stable DC 12V input, compatible with standard industrial power supplies.
7. Multi‑OS Support
Technical Specifications
Parameter | Specification |
|---|
Model | STN156 |
Screen Size | 15.6 inch |
Touch Screen | 10‑point capacitive touch |
Resolution | 1366×768 (HD) |
Brightness | 300 cd/m² |
Processor | Intel Core i3 / i5 |
Memory | 8GB / 16GB / 32GB |
Storage | 128GB / 256GB / 512GB SSD |
Operating System | Windows 7/10/11 / Linux |
External I/O | 1×DC, 1×HD‑MI, 2×COM (RS232/RS485), 4×USB, 1×LAN, 1×Audio out, 1×Audio in, 1×Push‑button |
Internal I/O | 6×USB 2.0, 4×COM (RS232), 1×GPIO, 1×SATA |
Wireless | WiFi, Bluetooth (optional 4G/5G) |
Power Input | DC 12V |
Material | Aluminium profile + aluminium back cover |
Cooling | Fanless |
Mounting | Wall mounted, Embedded, Desktop |
Operating Environment | -10°C~60°C, 10%~90% RH (non‑condensing) |
Storage Environment | -20°C~75°C, 5%~95% RH (non‑condensing) |
Dimensions | 400.4 × 254.4 × 58.7 mm |
Colour | Black / Grey |
Why Choose the STN156 for Your Kitchen or Industrial Application?
Boost Operational Efficiency – Replace paper tickets with real‑time digital order displays, reducing errors and improving kitchen‑to‑front‑of‑house communication.
Designed for 24/7 Use – Fanless, aluminium‑housed construction ensures reliable operation in greasy, hot, and humid conditions without performance throttling.
Future‑Ready Connectivity – Ample USB, COM, and LAN ports, plus optional 4G/5G, allow seamless integration with existing POS systems, printers, and IoT devices.
Cost‑Effective Customisation – Choose from multiple CPU, RAM, storage, and OS options to match your budget and performance requirements without overspending.
Easy Installation – Whether you mount it on a wall, embed it into a counter, or place it on a stand, the STN156 fits perfectly into any workspace.
Ideal Use Cases
Restaurant & QSR Kitchen Display Systems – real‑time order tracking and meal preparation.
Industrial HMI (Human‑Machine Interface) – machine control and data monitoring.
Self‑Service Kiosks – ticketing, ordering, or information points.
Retail POS Terminals – compact checkout or inventory management.
Medical or Laboratory Workstations – reliable touch interface for data entry.
Order the STN156 Today
Upgrade your kitchen or industrial workspace with the STN156 15.6" Touch Industrial KDS – a durable, high‑performance, and customisable display system that delivers value and reliability. Contact our sales team to discuss your specific configuration requirements, or place your order now for fast shipping and a 1‑year standard warranty (extended options available).
