GS-TD30
GSAN
8470501130

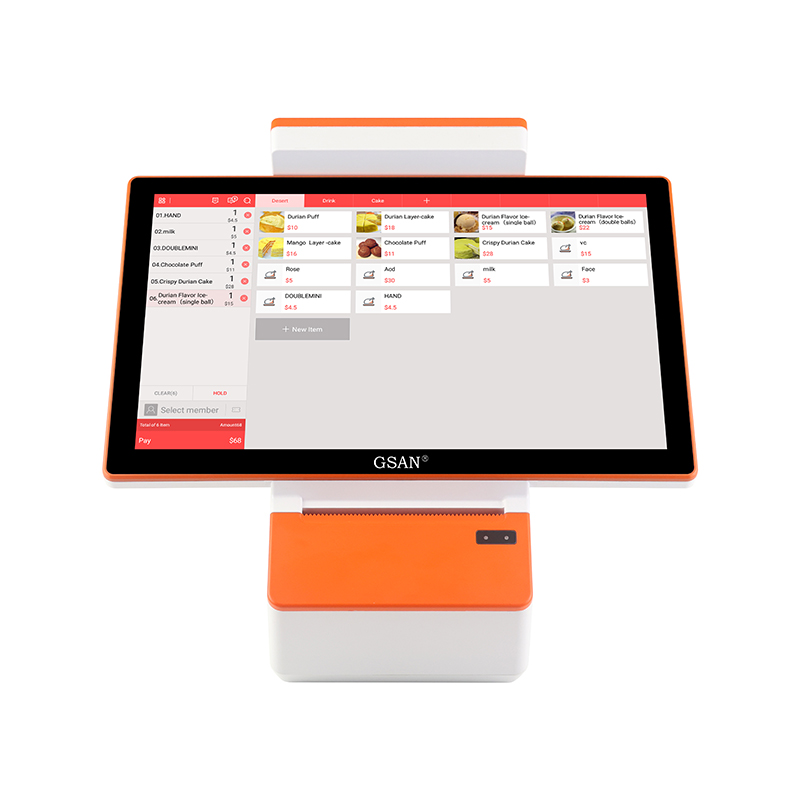

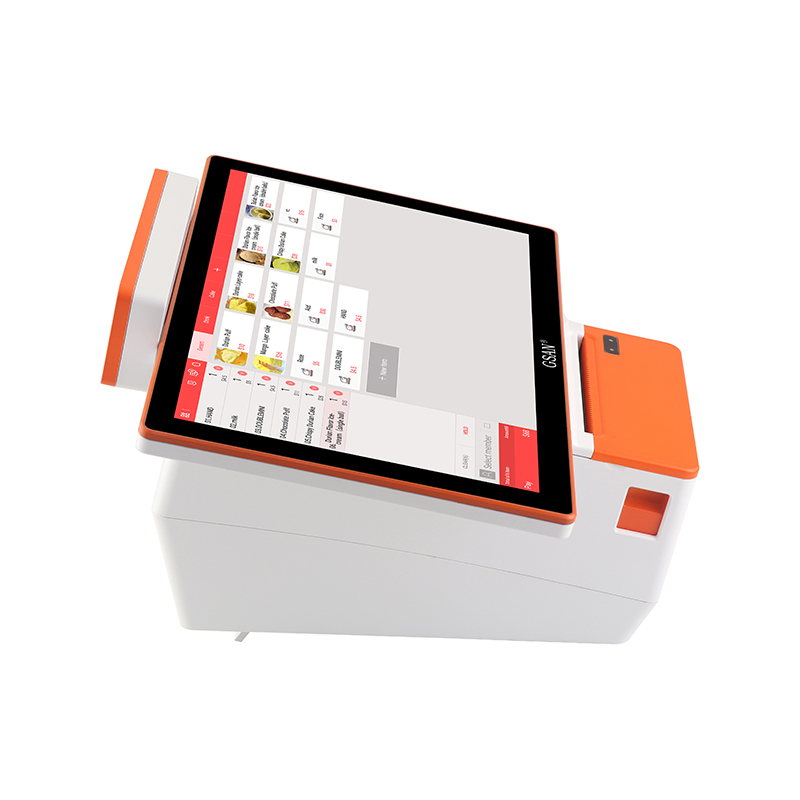

The GS-TD30 mini touch pos system is a compact, stylish all-in-one touch POS terminal developed by GSAN, ideal for modern retail, restaurant, and supermarket environments. Featuring an 11.6″ capacitive touch screen and built-in peripherals, it balances footprint, functionality, and flexibility. GS-TD30 supports multiple OS options (Windows, Android, Linux), making it a versatile solution for both end customers and system integrators.
By integrating the essential POS components —receipt printer, barcode scanner, customer display, I/O ports — into a single unit, the GS-TD30 reduces cabling clutter and simplifies deployment.
Here are the standout features of GS-TD30 pos system:
11.6″ Capacitive Touch Screen — Sleek 16:9 industrial-grade display with standard resolution 1366×768; optional upgrade to Full HD (1920×1080).
Multi-OS Support — Offers Windows, Android, or Linux motherboards, allowing deployment flexibility depending on your preferred POS software stack.
Processor Options
• Intel N5095 / N97 / J6412 / i3 / i5 (for Windows side)
• RK3566 / RK3568 (for Android builds)
Memory & Storage Options
• RAM: 4 GB / 8 GB,DDR3/DDR4 (for Windows) or2GB /4GB / 16 GB (Android)
• Storage: 64GB/128 GB / 256 GB / 512 GB SSD (Windows) or 32 GB / 64 GB / 128 GB / 256 GB (Android)
Built-in Peripherals

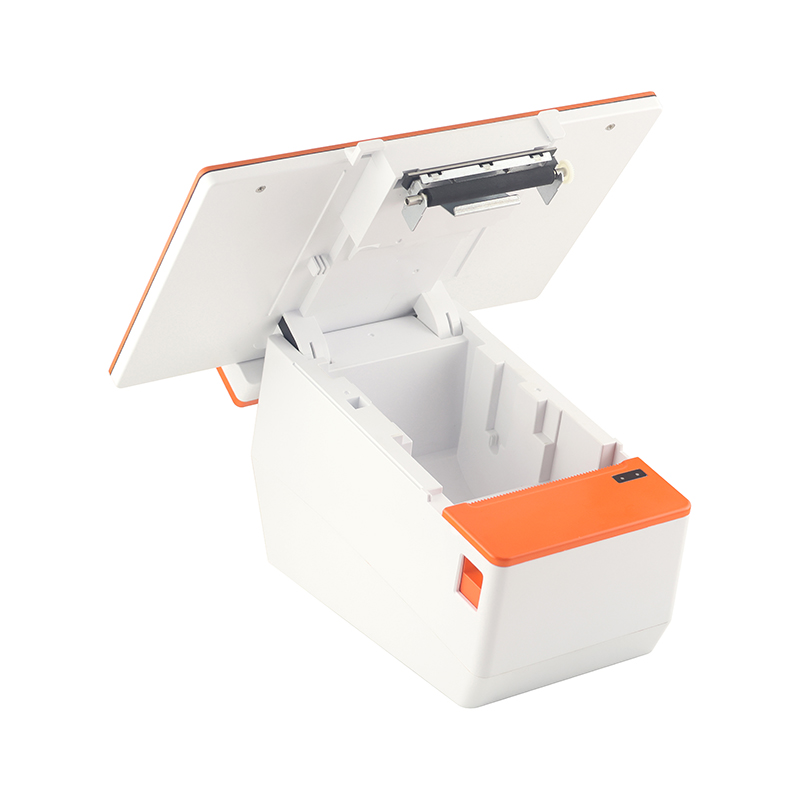

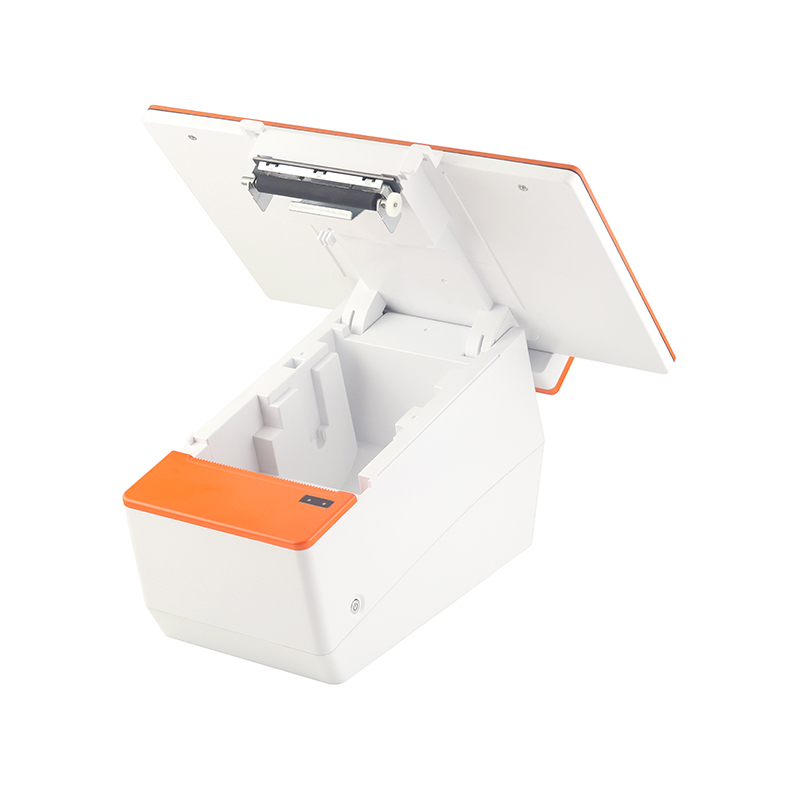

• Integrated thermal receipt printer (80 mm)
• Integrated barcode scanner (1D / 2D, front and/or back)

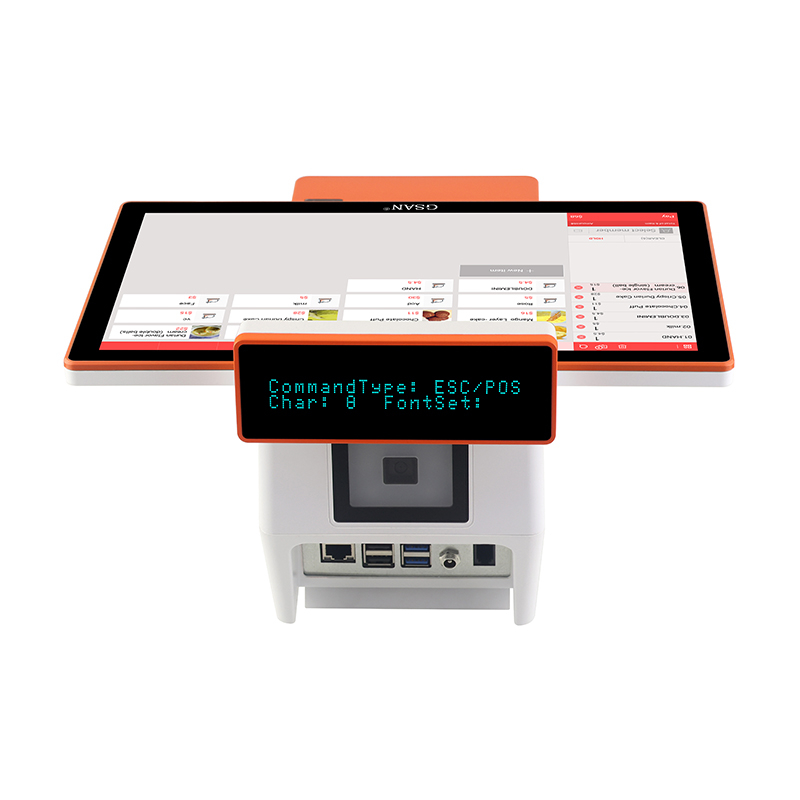

• Built-in customer display: VFD 2-line × 40 characters or LED 8-digit option
• Magnetic stripe reader (MSR) support (Track 1+2+3)
• Optional iButton / fingerprint / smart card module support

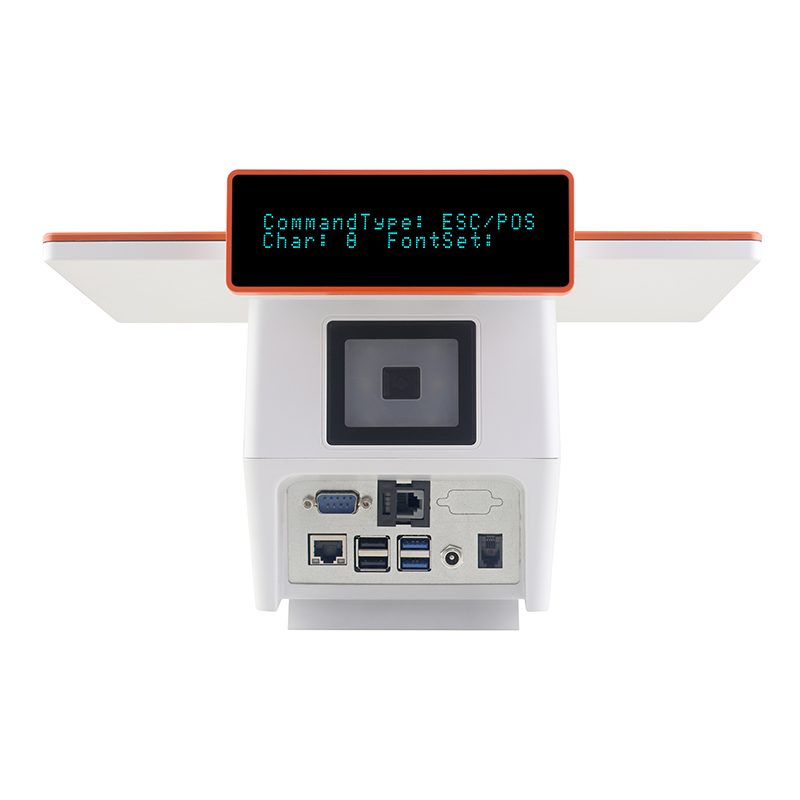

Connectivity / I/O Ports
• 4 × USB ports
• 1 × Ethernet (LAN, 10/100/1000)
• 2 × Serial (COM) ports
• 1 × RJ11 (for cash drawer)
• DC power input port
Power & Enclosure
• Input: 100-240 V AC (50-60 Hz)
• Output: 12 V/5A DC (for internal circuits)
• Net weight: ~2.3 kg; gross weight: ~3.3 kg
Certifications & Quality
• CE, CCC, FCC, and other global compliance standards
Customization / OEM Option
• GSAN indicates that “Customization: Available” for GS-TD30, meaning you can request tailored hardware and software configurations.
Warranty & Support
• Standard one-year warranty (with extension options) (typical GSAN practice)
The GS-TD30 is designed to meet the demands of multiple real-world business environments. Below is how it fits into key verticals:
In boutique stores, electronics shops, fashion outlets, and cosmetics stores, the compact GS-TD30 touch pos cash register offers a clean, minimal footprint. The 11.6″ touchscreen enables fluid transaction operations, and the built-in barcode scanner speeds up item scanning. The optional customer display allows real-time price display, upsell messaging, or loyalty prompts. USB ports support peripheral devices like label printers or RFID readers. With OS flexibility, you can run your preferred retail POS software.
High-throughput checkout lanes benefit from the GS-TD30’s integrated scanner and fast peripheral I/O. Its serial ports support connections to existing weigh scales or back-of-house systems. The internal printer reduces the need for external receipt printers and saves counter space. The strong CPU options (like N5095 / i3) ensure the system handles complex inventory lookups or promotion logic without lag. The customer display reassures customers by showing line-item details or discounts as items are scanned.
In food & beverage environments, GS-TD30 supports integrated order flows: staff can place orders, the terminal routes data to kitchen printers or KDS (Kitchen Display Systems). Its compact size makes it suitable for counter or waitstaff docks. Multi-payment support (QR code, card, etc.) is feasible via software on Windows or Android builds. The integrated printer can serve as the kitchen order slip or receipt printer if layout permits. The flexibility to embed modules like fingerprint or smart card readers allows identity or loyalty features at POS.
Due to its compact and integrated design, the GS-TD30 is well-suited for pop-up shops, trade-show booths, or mobile retail installations. Fewer external peripherals and cables mean faster deployment. Its small form factor allows easy repositioning or transport.
One of the core differentiators for GSAN’s POS lines is their strong OEM/ODM and customization support. The GS-TD30 is no exception — “Customization: Available” is a listed feature. Below is how GSAN can enable your bespoke POS solution:
Color & Finish: Choose brand-matching housing colors (e.g. black, white, custom pantone), surface finish (matte, gloss, textured).
Logo & Marking: Laser engraving or silkscreen of your logo, product name, certification labels, or serial numbers.
Bezel / Faceplate Layout: If your POS solution needs special indicator lights, extra buttons or status LEDs, GSAN can design a custom front bezel or panel layout to accommodate them.
Port & I/O Reconfiguration: You can request additional USB ports, extra serial interfaces, alternate RJ connectors, or custom expansion slots.
Embedded Modules: Built-in integration of magnetic stripe readers, RFID/NFC modules, fingerprint sensors, smart card readers, or iButton modules can be done at factory level.
Wireless Modules: Options for built-in WiFi, Bluetooth, or cellular (4G/5G) connectivity.
Alternate Printer / Scanner Modules: Choice of printer widths (58 mm or 80 mm), scanner types (1D/2D), or even dual scanner orientations.
Alternate Display Options: In addition to the 11.6″ main display, GSAN can design secondary customer-facing displays (touch or non-touch) or pole displays.
Power & Regional Compliance: Adapt power input specs, regional AC/DC modules, or any localized compliance modules (fiscal modules, taxation hardware) per market needs.
Preloaded POS / Application Software: GSAN can ship each unit with your choice of POS software, configured and integrated out-of-the-box, with custom UI, startup sequences, skins, or menu flow.
Driver & Firmware Integration: Custom drivers, hardware abstraction, firmware patches or calibration can be baked in, making your software integration easier.
Remote Management & OTA Update Support: Support for over-the-air updates, remote diagnostics, and centralized fleet management.
Localization & Multi-language Support: Pre-installed language packs, region-specific firmware, keyboard layouts, currency/locale settings.
Batch Version Management: For clients running multiple hardware variants or deployed across sites, GSAN can assist with version control, firmware branching, and consistent QA across production runs.
Low MOQ & Prototyping: GSAN supports small-quantity runs or prototype units, enabling you to pilot before full-scale deployment.
Certification & Compliance Assistance: GSAN can assist in CE, FCC, CCC, RoHS, and other regional certifications, and can produce compliance documentation.
Spare Parts & After-Sales: GSAN can provide spare component kits, global part sourcing, and warranty coverage across large deployments.
Quality Assurance & Testing: Each unit can undergo customized pre-shipment testing (burn-in, functional test suites, stress tests) per your standards.
With the “Customized” option, you are not limited to an off-the-shelf POS terminal — you are getting a flexible hardware and software platform that you can adapt and brand as your own.
Compact Yet Feature-Rich — The 11.6″ integrated terminal packs in many peripherals while keeping a small footprint.
Flexible OS & Hardware Options — You can choose Windows, Android, or Linux builds with various CPU, memory, and storage choices.
All-in-One Integration — Built-in printer, scanner, customer display, and MSR reduce external parts and simplify wiring.
Connectivity & Expansion Ready — Multiple I/O ports and expansion possibilities support evolving business needs.
Strong OEM / ODM Support — Full customization possibilities transform GS-TD30 into a branded, integrated solution for your business.
Versatile Across Use Cases — Well-suited for retail, supermarket, F&B, pop-up, and chain deployments.
